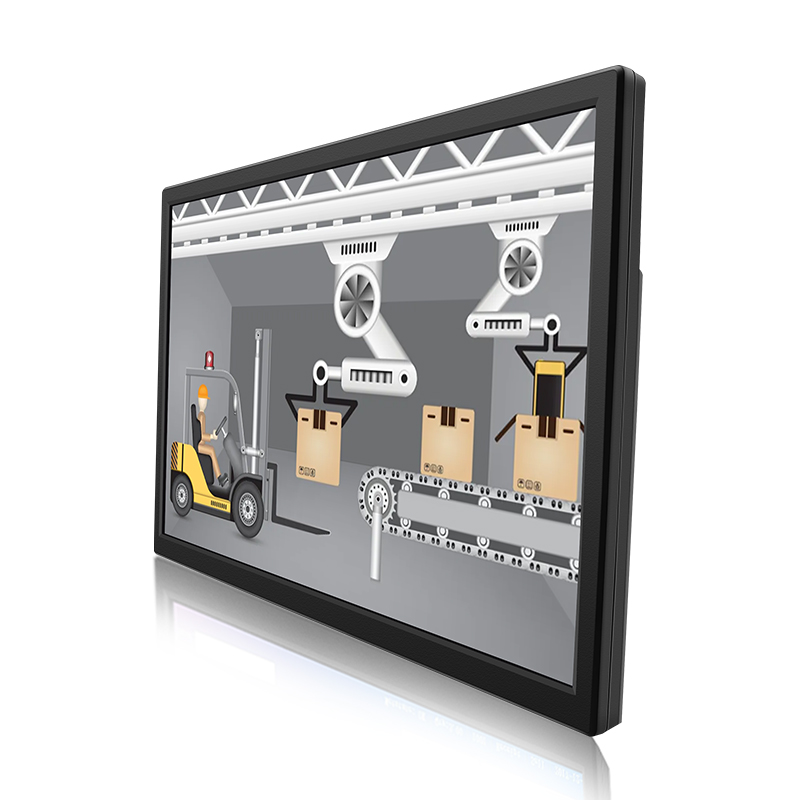

18.5 Inch 1366*768 HDMI VGA AV BNC USB Resistive Touch Wide Screen Plastic TFT Vesa Wall Mounted Desktop Stand OEM ODM Industrial Factory POS CCTV Monitor
Model No :B185-T
| Datasheet | |
| Model | B185-T |
| Size | 18.5" |
| Active Area | 409.8*230.4 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1366*768 |
| Acpect Ratio | 16:9 |
| Contrast | 1000:1 |
| Brightness | 250 cd/m |
| Viewing Angle (H/V) | 170/160 |
| Response Time | 25 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

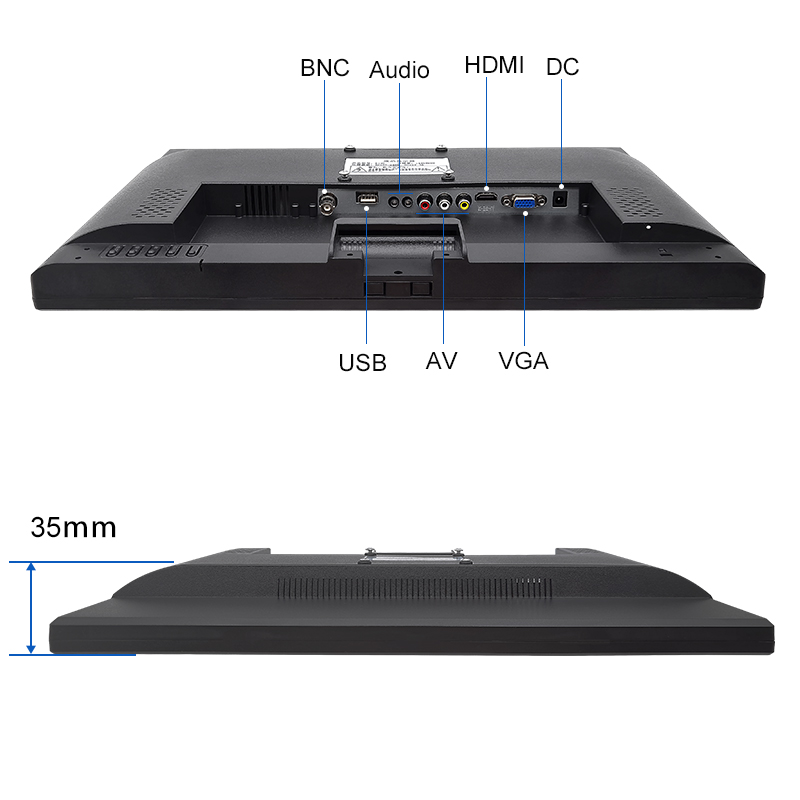

| Video Inputs/Outputs | HDMI/VGA/BNC/Audio/RLV/DC input*1 |
| Audio Inputs/Outputs | N/A |
| Touch | 4-wire Resistive |

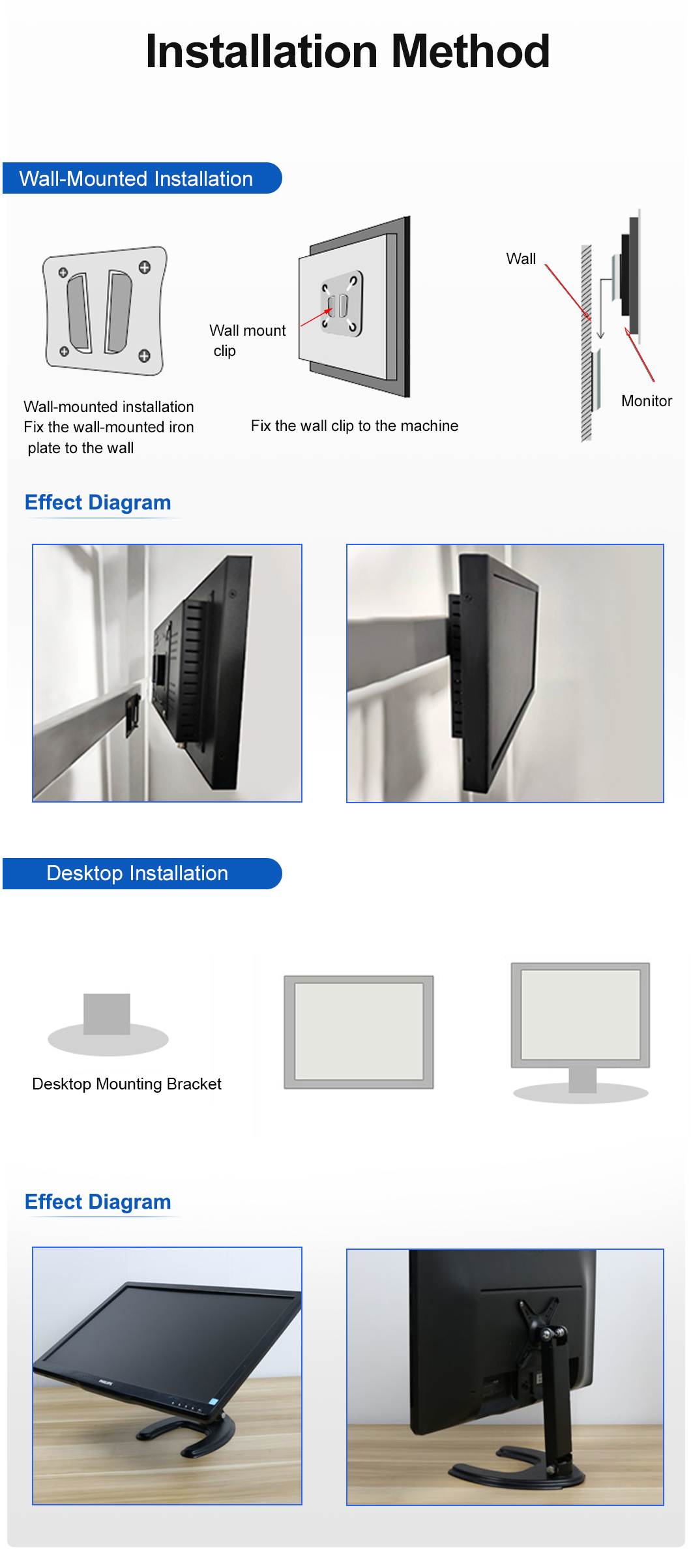

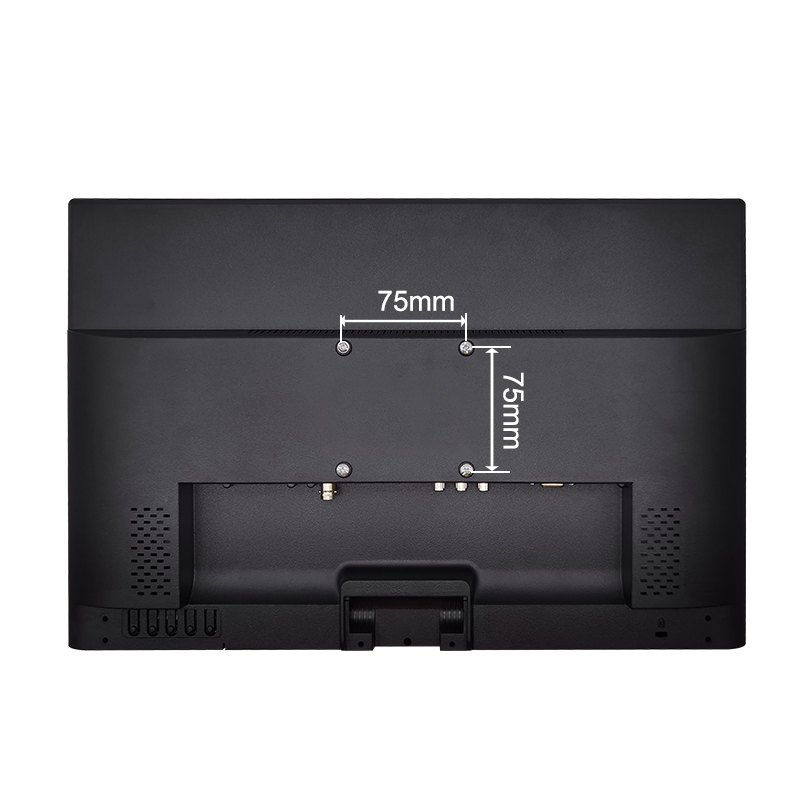

| Installation | Stand base/VESA mount |
| Power Requirement | DC 12V |

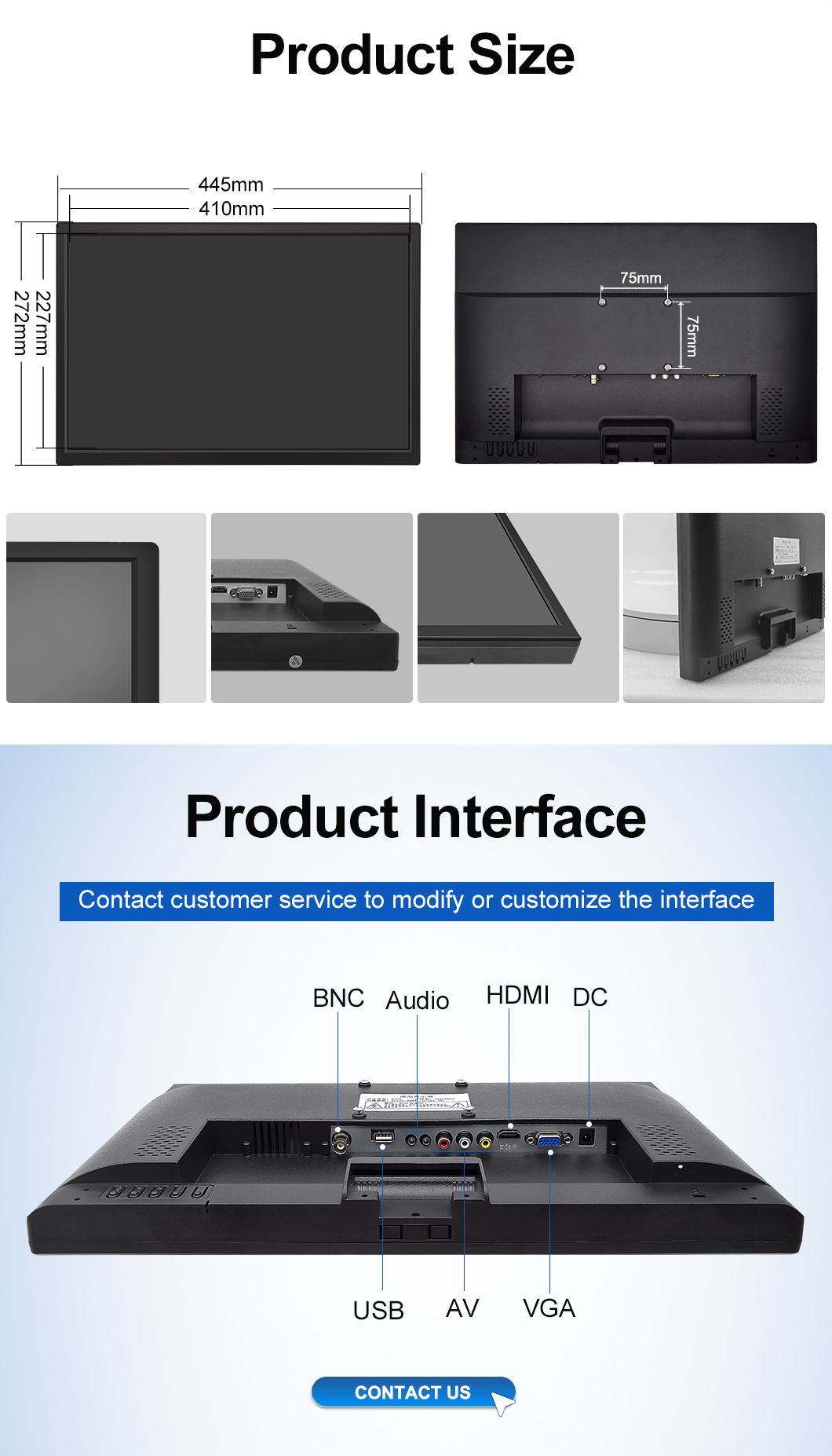

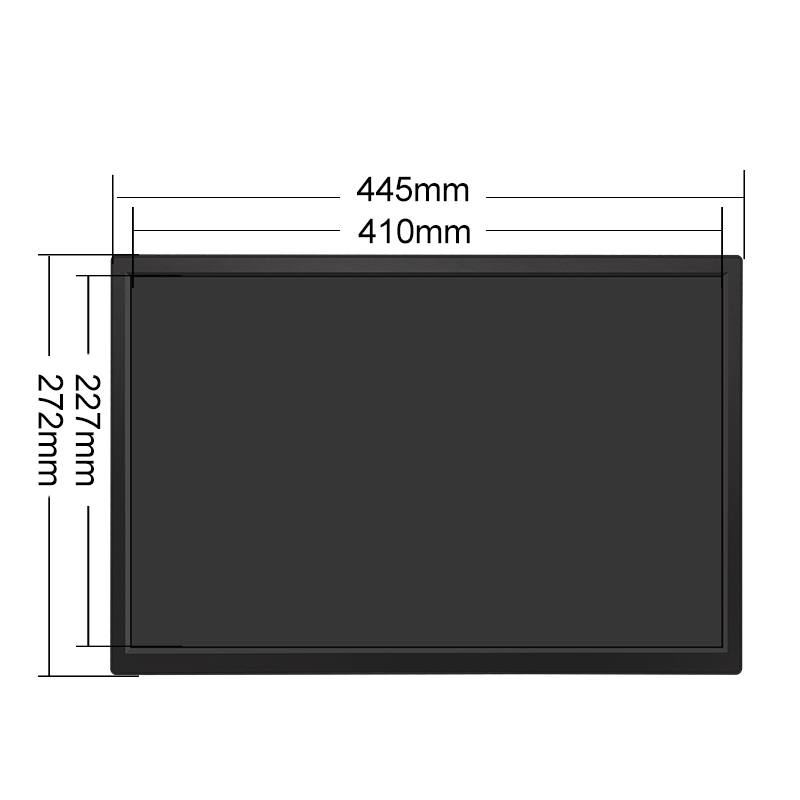

| Dimension (W*H*D) | 454*284*40 mm |
| Weight | 2.95kg |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS |

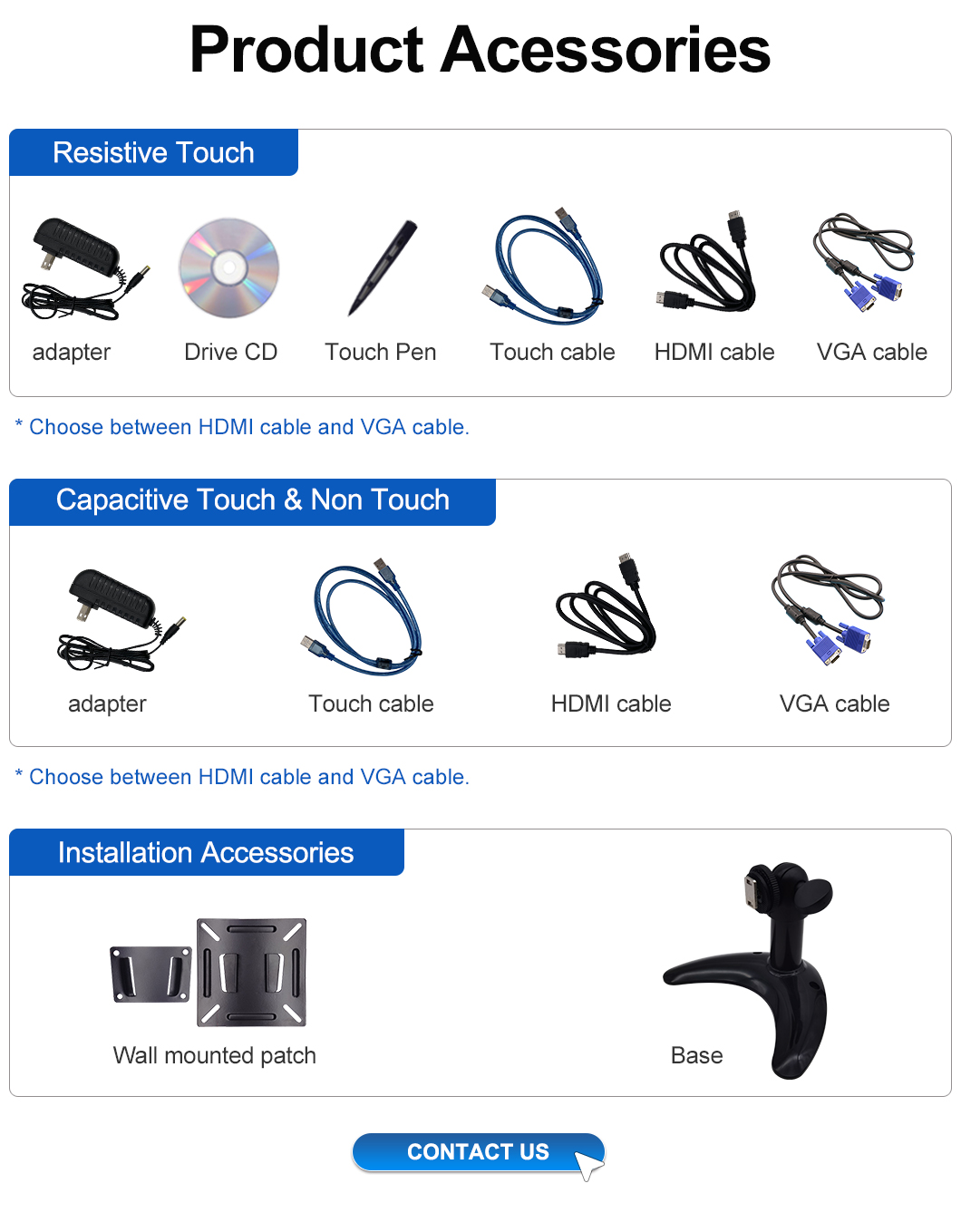

| Accessories:Plastic stand/ VESA wall mount kit , VGA,AV,HDMI,BNC,USB cable, touch pen, disk drive, power adapter, warranty card, , manual. | |
-
